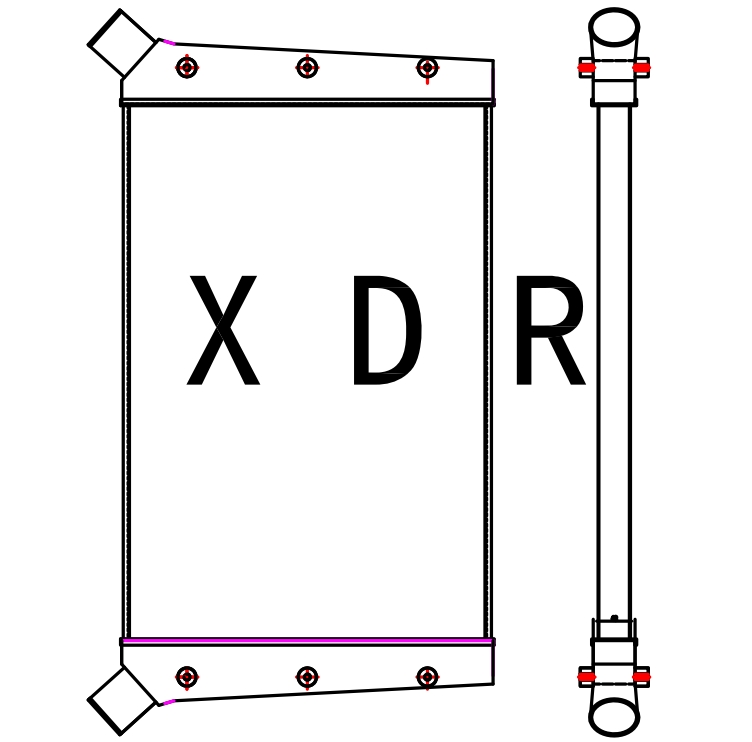

Air Radiator System for Hitachi 800 Excavator: Technical Overview

The air radiator system in a Hitachi 800 excavator is a critical cooling component that maintains optimal operating temperatures for the machine's engine and hydraulic systems. While the search results don't contain specific details about the Hitachi 800 excavator's air radiator, we can provide a comprehensive technical explanation based on general principles of heavy equipment cooling systems and related thermal management technologies.

Function and Importance

The air radiator in an excavator serves several vital functions:

1. Heat Dissipation: Transfers heat from engine coolant and hydraulic oil to the surrounding air, preventing overheating 1

2. Temperature Regulation: Maintains stable operating temperatures for optimal engine performance and fuel efficiency

3. System Protection: Prevents thermal degradation of hydraulic fluids and engine components

Key Components

A typical excavator air radiator system consists of:

• Core Assembly: Usually constructed with aluminum or copper fins and tubes for maximum heat transfer efficiency 3

• Fan System: Provides forced air circulation through the radiator core

• Shroud: Directs airflow efficiently through the radiator matrix

• Mounting Frame: Secures the radiator assembly to the excavator chassis

Operational Principles

The air radiator operates on fundamental thermodynamic principles:

1. Heat Transfer: Hot coolant or hydraulic oil flows through radiator tubes

2. Airflow: The fan draws ambient air across the finned surfaces

3. Temperature Reduction: Heat transfers from the fluid to the air, cooling the fluid before it recirculates 1

Maintenance Considerations

For optimal performance of the Hitachi 800's air radiator:

• Regular Cleaning: Remove debris and dust accumulation from fins

• Inspection: Check for leaks, damaged fins, or clogged passages

• Coolant Quality: Maintain proper coolant mixture and levels 3

Advanced Features in Modern Excavators

While not specific to the Hitachi 800, contemporary excavator radiators may incorporate:

• Variable Speed Fans: Adjust cooling capacity based on temperature demands

• Composite Materials: Lightweight yet durable construction

• Protective Screens: Prevent large debris from damaging the core 8

For precise specifications and maintenance procedures for the Hitachi 800 excavator's air radiator system, consulting the official Hitachi service manual would be recommended.
