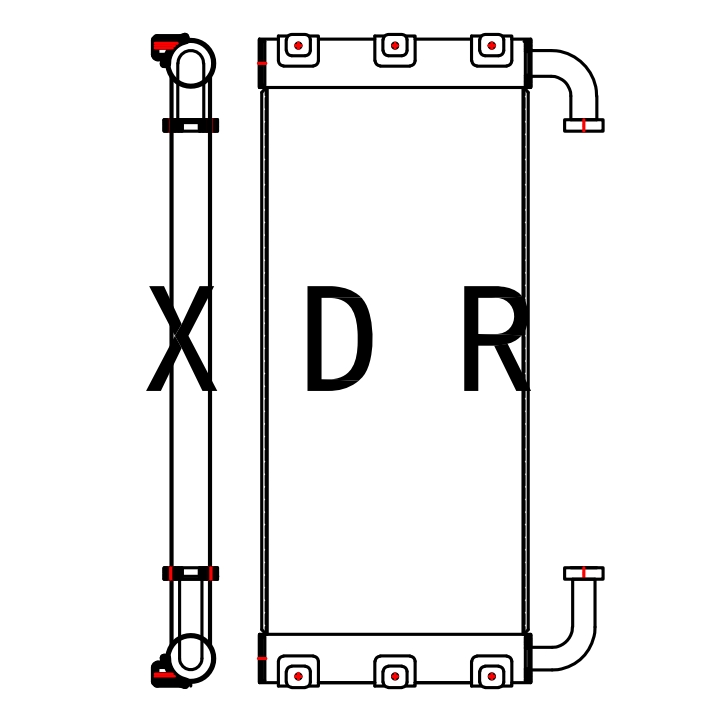

The Hydraulic Oil Radiator (also called a hydraulic oil cooler) in a Hitachi 250-5A excavator is a critical component that helps regulate the temperature of the hydraulic system. Here’s a detailed explanation:

Function:

The hydraulic oil radiator cools down the hot hydraulic oil that circulates through the excavator’s hydraulic system. Since hydraulic systems generate significant heat due to friction and pressure, the radiator prevents overheating, ensuring optimal performance and preventing damage to seals, hoses, and other components.

Key Features:

1. Construction:

• Made of aluminum or copper fins with tubes for efficient heat dissipation.

• Often includes a fan or is placed in an airflow-optimized location for better cooling.

• Typically mounted near the engine radiator or hydraulic pump for effective cooling.

• Hot hydraulic oil flows through the radiator.

• Airflow (from the excavator’s movement or an attached fan) cools the oil as it passes through the fins.

• The cooled oil returns to the hydraulic system to maintain stable operating temperatures.

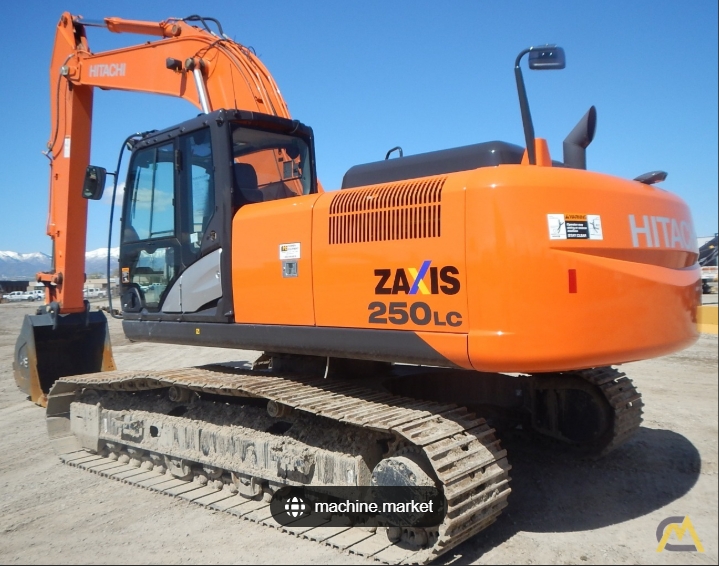

Importance in Hitachi 250-5A:

• Prevents oil degradation (overheated oil loses viscosity and lubrication properties).

• Extends the lifespan of hydraulic pumps, valves, and cylinders.

• Maintains efficient excavator performance by preventing overheating-related failures.

Common Issues & Maintenance:

• Clogging: Dirt and debris can block fins, reducing cooling efficiency.

• Leaks: Damaged tubes or seals can cause oil leaks.

• Fan Failure: If equipped with a fan, a malfunction can lead to poor cooling.

Maintenance Tips:
✔ Regularly clean the radiator fins to ensure proper airflow.
✔ Check for oil leaks or physical damage.
✔ Monitor hydraulic oil temperature to detect cooling system problems early.
