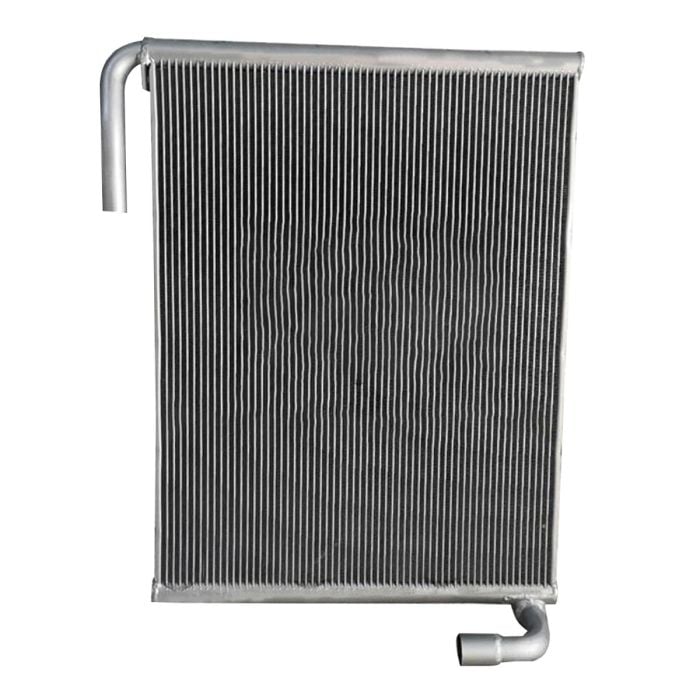

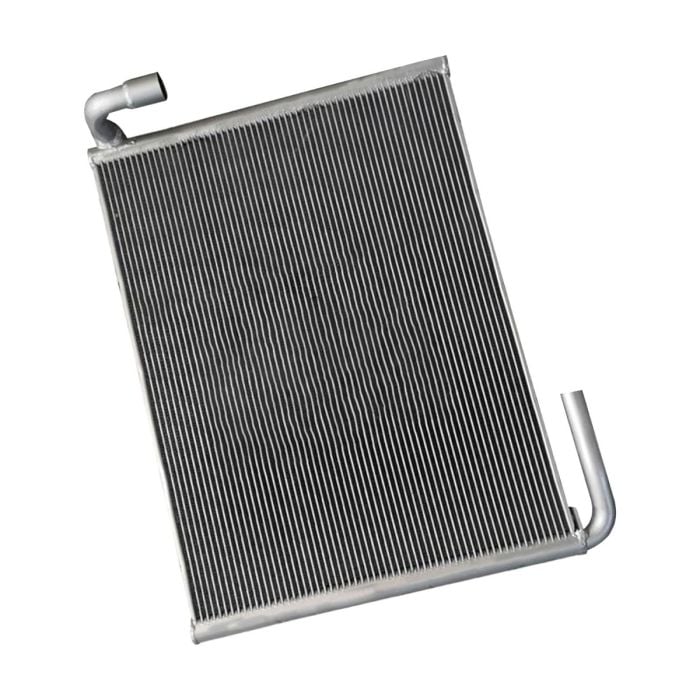

Replacement Hydraulic Oil Radiator for Kobelco SK230-6E Excavator

This product is an aftermarket replacement cooler designed to perform the same function as the original hydraulic oil radiator (also commonly called a hydraulic oil cooler or heat exchanger) on a Kobelco SK230-6E excavator.

1. Primary Function:

The main job of this component is to cool down the hydraulic oil in the excavator's system.

Why it's needed: The excavator's hydraulic system generates immense heat from the pump, valves, and cylinders working under heavy loads. If the oil gets too hot, it loses its lubricating properties, leading to increased wear on pumps and motors, seals can harden and fail, and overall efficiency drops.

How it works: The radiator is typically located where air can flow through it (often next to the engine radiator). Hot hydraulic oil is pumped through a series of tubes inside the cooler. Fins attached to these tubes dissipate the heat into the air blown through by a fan, lowering the oil's temperature before it is recirculated back into the hydraulic system.

2. Key Features of a Replacement Part:

Direct Fit / Bolt-On Replacement: It is engineered to match the exact dimensions, mounting points, and port (hose connection) sizes of the original Kobelco part. This allows for straightforward installation without requiring modifications.

Material & Construction: Typically constructed from durable aluminum or copper-brass cores with aluminum fins for efficient heat transfer. The tanks (end caps) are often made from reinforced nylon or metal.

Performance: Designed to meet or exceed the original equipment's cooling capacity, ensuring your hydraulic system maintains a safe and optimal operating temperature.

Compatibility: Specifically designed for the Kobelco model SK230-6E. It is crucial to verify your machine's model number to ensure compatibility, as coolers can differ between excavator series.

3. Reasons for Replacement:

You would need to replace this part if:

Physical Damage: The cooler is bent or cracked from an impact (e.g., a rock, debris).

Leaks: Corrosion or damage has caused pinhole leaks, resulting in a loss of hydraulic oil.

Clogging: The internal tubes are blocked by contaminated oil or debris, restricting flow and reducing cooling efficiency.

Finned Area Damage: The cooling fins are bent or crushed, blocking airflow and preventing proper heat dissipation.

4. Important Notes for Buyers:

Quality Varies: The quality and longevity of aftermarket replacements can vary significantly between manufacturers. It is advisable to choose a reputable supplier.

Warranty: Check the warranty terms offered with the part.

Installation: Proper installation is key. This includes cleaning the surrounding area, using correct seals or O-rings, and ensuring the system is bled of air after replacement to prevent damage.

Simple Summary:

This is a direct-fit, aftermarket hydraulic oil cooler for a specific Kobelco excavator model (SK230-6E). Its job is to keep the hydraulic oil from overheating by transferring the heat into the air, just like the original part. It's the part you need if your old cooler is leaking, damaged, or clogged.
