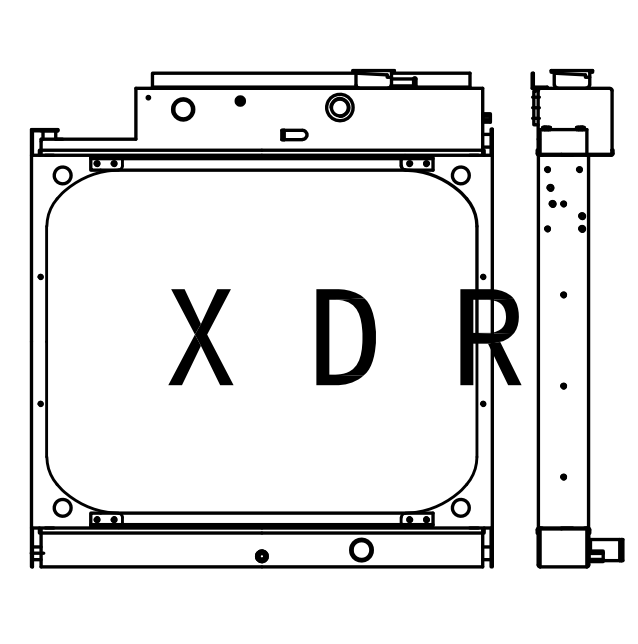

The radiator on a Volvo 240B excavator (often referred to as the "water tank" or "cooling system reservoir" in casual terms) is a critical component of the engine cooling system.

Here’s a detailed explanation:

1. Primary Function: Heat Dissipation

Its main job is to cool the engine by dissipating heat. The engine generates immense heat during operation. Coolant (a mixture of water and antifreeze) circulates through the engine block, absorbs this heat, and then flows to the radiator. As air passes through the radiator's fins (pulled by a fan), the heat is transferred from the hot coolant to the outside air, cooling the liquid before it recirculates.

2. Key Components Related to the "Water Tank":

• Radiator Core: The main network of tubes and fins where coolant releases heat.

• Header/Expansion Tank: Often called the "overflow tank" or "coolant reservoir." This is a plastic tank usually connected to the main radiator. It holds excess coolant and allows for expansion and contraction as the coolant heats and cools. This is the part most people might visually identify as a "water tank."

• Pressure Cap: Seals the system, allowing it to pressurize. A pressurized system raises the boiling point of the coolant, making cooling more efficient.

• Coolant: The fluid itself. It's not just water; it contains antifreeze to prevent freezing in winter, boiling in summer, and corrosion inhibitors to protect the metal parts of the engine and radiator.

3. Importance for the Volvo 240B:

• Prevents Overheating: A faulty radiator (clogged, leaking, or damaged) is the leading cause of engine overheating. Overheating can cause catastrophic engine damage, such as a cracked cylinder head or warped components.

• Maintains Operating Efficiency: The engine runs most efficiently within a specific temperature range. The radiator ensures it stays in this range.

• Heating the Cab: In many machines, the hot coolant is also used to provide heat for the operator's cab via a smaller heat exchanger (heater core).

4. Common Maintenance & Issues:

• Leaks: Cracks, holes, or damaged seals can cause coolant loss.

• Clogging: Dirt, debris, or internal corrosion/scale buildup can block the fine tubes of the radiator core, reducing its cooling capacity.

• Damaged Fins: Bent or crushed fins (from debris or impacts) reduce airflow and cooling efficiency.

• Regular Care: It requires checking coolant levels regularly (when the engine is cool) and changing the coolant at intervals specified in the operator's manual to maintain its anti-corrosive properties.

In simple terms: The radiator (cooling system) is the excavator's "air conditioner." It constantly removes excess engine heat to prevent the machine from destroying itself from the inside out. Keeping it in good condition is essential for the reliability and longevity of the Volvo 240B.
